Facades
Working with Infinity slabs

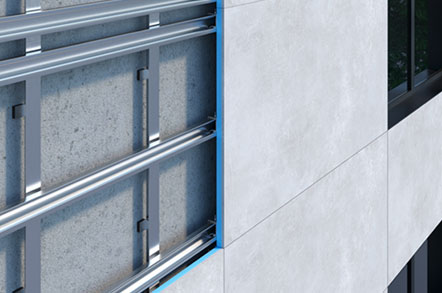

Ventilated façade
DESIGN
Infinity offers various ventilated façade systems. The professionals of the Project Division offer an in-house service of planning aimed at optimising the aesthetic choices in relation to the technical performance required.
This combination comes from studying the architectural design and is developed through an analysis of various façade system components:
- Infinity cladding panel
- ventilated cavity
- thermal-insulating layer
- façade structure
- building structure
A SUSTAINABLE SOLUTION
Ventilated façades are a highly sustainable system, aimed to increase the energy performance of buildings.
The ventilated system works with the thermal insulation layers to minimise consumption linked to the cooling of interior areas, to improve indoor comfort, to disperse moisture from the walls behind and to protect them from bad weather.
The Project Division of Infinity specialises in the design and consultancy for any type of architectural project. “Tailor-made” applications are fitted to the needs of customers, architects and industry professionals.Complete competency and in-depth experience is ensured by our experts who will always find concrete and punctual solutions for the project requirements and after-sales assistance.
Would you like to know more about the Infinity products?
Would you like to consult the Catalogue dedicated to the Project Division?
The UNI 11018 standards define the ventilated façade as a type of rain screen barrier where the cavity between the siding and the wall is designed in such a way that the air within it can flow naturally thanks to the principal called “chimney effect”, which notably improves the overall thermal-energy performance of the building.
The advantages of the infinity ventilated façade
The Infinity ventilated façades are an investment for the building that is easily offset considering the energy savings it brings
The useful life of the façade can be compared to that of the building itself, and it does not require specific maintenance
Sustainability and efficiency are guaranteed thanks to the lowered energy consumption and zero costs in maintenance
The systems with mechanical anchoring exclusively use non-combustible materials
The ventilation within the cavity wall helps disperse the interstitial moisture of the exterior wall assemblies
The cladding slabs are not subject to any kind of deterioration caused by weathering and at the same time protect the layers behind, extending their useful life
The ventilated façade is a guarantee of thermal-hygroscopic comfort and acoustic insulation
Infinity ventilated façades are designed to permit all kinds of thermal dilation between the materials. Furthermore, cladding raised off the wall surface avoids all types of efflorescence
Thanks to the vast selection of colours and finishes, Infinity makes for punctual and high-performing architectural projects
All ceramic and metallic components are recyclable and during their life cycle, which is longer than the average for construction materials, they do not emit VOC or other harmful substances
The ventilated façade system is easy to apply to existing buildings, improving appearance and energy performance
Infinity slabs are produced using the highest quality standards and, thanks to their size, they lend themselves for use in all types of residential and non-residential construction
Would you like to know about Infinity’s commitment to the environment?
Would you like to consult the Catalogue dedicated to the Project Division?
Types of ventilated façade
Infinity offers two categories of Ventilated Façade based on the thickness of the slab used:
6mm
Hybrid chemical/mechanical anchorage system
12mm
Purely mechanical anchorage system

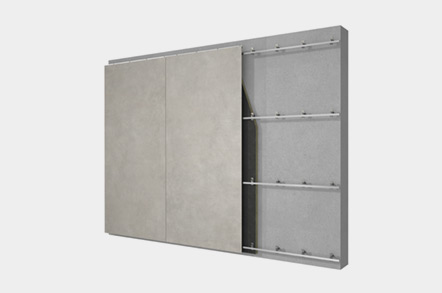

Ventilated Façade with 6mm Infinity slabs
The 1600x3200mm Infinity slabs with 6mm thickness allow for the creation of ventilated façades with a huge reduction in the weight of the system. The reduced thickness of the slab is not suited to purely mechanical fixing, therefore the proposed systems use chemical adhesives to improve the wind resistance of the façade.
Furthermore, mechanical safety brackets are always used in combination with this kind of anchorage. The chemical adhesives require a great deal of care in the application phase and, for this reason, the Infinity systems prefabricate this bonding phase at the manufacturing plant, checking that it meets all the application protocol standards.
This stage can be done in three different ways:

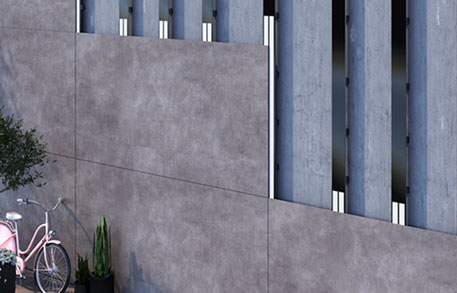

Prefabrication on aluminium vertical profile
Using specific chemical adhesives, the Infinity slabs are pre-assembled onto aluminium profiles that have been specifically shaped to house concealed mechanical brackets and vertical supports that guarantee the safety of the system in all environmental conditions.
Prefabrication on aluminium vertical profile
Using specific chemical adhesives, the Infinity slabs are pre-assembled onto aluminium profiles that have been specifically shaped to house concealed mechanical brackets and vertical supports that guarantee the safety of the system in all environmental conditions.
PREFABRICATION ONTO PANEL
The stoneware slab is pre-assembled by gluing and pressing it onto a panel made up with a modified polymer “core” and by a steel sheet. The final thickness of 18mm makes it suited to the construction of angular elements and monoliths for stunning architectural and aesthetic impact.
Would you like to see the Infinity graphic designs available?
Would you like to consult the Catalogue dedicated to the Project Division?

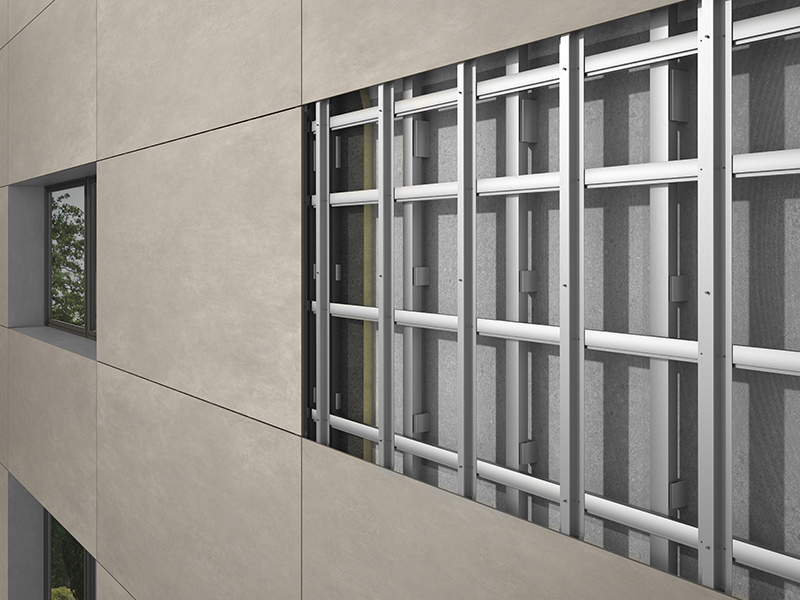

Ventilated Façade with 12mm Infinity slabs
Purely mechanical hanging systems can be adopted when using the Infinity slabs with a 12 mm thickness. These offer the best performance in terms of safety and durability of the façade.
CONICAL UNDERCUT ANCHORAGE
Infinity slabs are designed and drilled at the manufacturing plant using special cutters that generate slots on the back of the slabs, with conical section. The anchorage to the structure on site is done using inserts that expand within the slots but don’t generate any tension and stress within the body of the slab. This system is completely mechanical, which makes it easy to package and transport and, furthermore, guarantees the usual Infinity installation in any environmental situation.
Would you like to see the Infinity graphic designs available?
Would you like to consult the Catalogue dedicated to the Project Division?
The use of ceramic materials directly onto the wall, both inside and outside is particularly common worldwide.
Infinity slabs are suitable for this use and offer
significant benefits and added value to the building
Less than 16 kg/m² dead weight
Easy installation and reduced costs compared to other types of cladding systems
Weather protection for the building
No deterioration suffered over time from weather conditions
No façade maintenance
Vast range of colours and finishes large and scale format able to cover the buildings’ interfloor gap
